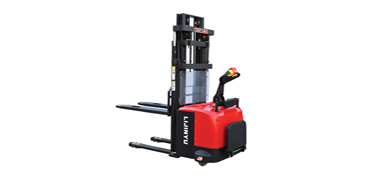

CD-D10AD

Electric Stacker

Product advantage

Ride on type electric stackers come with a foldable platform which allows operators greater access and flexibility.

Built-in pressure relief valve protects the trucks from overloads, increases the reliability.

Water- proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.

Low voltage protection setting prolongs the battery life time.

Multi-function display with BDI and hour meter.

Product introduction

1. 瑞马手柄,操作灵活稳定。
2. 美国进口交流系统,反应灵敏。
3. 大容量蓄电池,保证动力强劲持久。
4. 低电压保护,延长蓄电池使用寿命。
5. 设计美观流畅,符合现代审美。

Product parameter

1.1Brand
LJYLJYLJYLJYLJYLJYLJYLJY
1.2Model
CD-D15ADCD-D15ADCD-D15ADCD-D15ADCD-D20ADCD-D20ADCD-D20ADCD-D20AD
1.3Power type
Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)Battery(AC)
1.4Driving type
StandingStandingStandingStandingStandingStandingStandingStanding
1.5Rated load capacityQ(kg)15001500150015002000200020002000
1.6Load centerC(mm)500500500500500500500500
1.7Front Wheelbasey(mm)700700700700700700700700
1.8Rear Wheelbasey(mm)410/525410/525410/525410/525410/525410/525410/525410/525
Wheels


3.1wheel type
 PU PU PU PU PU PU PU PU
3.2Load wheel size mmΦ80×70Φ80×70Φ80×70Φ80×70Φ80×70Φ80×70Φ80×70Φ80×70
3.3Drive wheel sizemmΦ248×75Φ248×75Φ248×75Φ248×75Φ248×75Φ248×75Φ248×75Φ248×75
3.4Stabilizing wheel sizemmΦ115×55Φ115×55Φ115×55Φ115×55Φ115×55Φ115×55Φ115×55Φ115×55
3.5Number of wheels,front/rear(x=drive wheel)
4/1x+24/1x+24/1x+24/1x+24/1x+24/1x+24/1x+24/1x+2
Size


4.1Mast closed heighth1(mm)14601710196022801460171019602280
4.2Lift heighth3(mm)20002500300036002000250030003600
4.3Mast extended height with load-backresth4(mm)24702970347040702470297034704070
4.4Minimum height of forkh13(mm)9090909090909090
4.5Overall lengthl1(mm)20802080208020802080208020802080
4.6Overall widthb1(mm)800800800800800800800800
4.7Fork sizel/e/s(mm)1150/160/601150/160/601150/160/601150/160/601150/160/601150/160/601150/160/601150/160/60
4.8Fork outside widthb5(mm)550/680550/680550/680550/680550/680550/680550/680550/680
4.9Mast ground clearancem1(mm)9090909090909090
4.10Aisle width for pallet 1000x1200mm, lengthwaysAst(mm)29502950295029502950295029502950
4.11Aisle width for pallet 800x1200mm, lengthwaysAst(mm)28802880288028802880288028802880
4.12Turning radiusWa(mm)16881688168816881688168816881688
Function


5.1Driving speed, laden/unladenkm/h4.2/5.64.2/5.64.2/5.64.2/5.64.2/5.64.2/5.64.2/5.64.2/5.6
5.2Lifting speed, laden/unladenmm/s80/10080/10080/10080/10080/10080/10080/10080/100
5.3Lowering speed, laden/unladenmm/s150/120150/120150/120150/120150/120150/120150/120150/120
5.4Maximum climbing ability, laden/unladen%(tanθ )3/103/103/103/103/103/103/103/10
5.5Braking method
ElectromagneticElectromagneticElectromagneticElectromagneticElectromagneticElectromagneticElectromagneticElectromagnetic
Drive


6.1Drive motorkw1.51.51.51.51.51.51.51.5
6.2Lift motorkw3.03.03.03.03.03.03.03.0
6.3Battery, voltage/rated capacityV/Ah24V/240Ah24V/240Ah24V/240Ah24V/240Ah24V/240Ah24V/240Ah24V/240Ah24V/240Ah
6.4Battery weightkg220220220220220220220220
6.5Steering system
Electric steeringElectric steeringElectric steeringElectric steeringElectric steeringElectric steeringElectric steeringElectric steering
