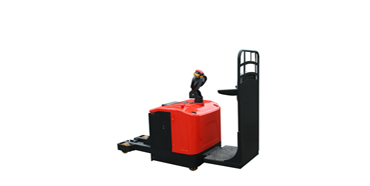

Product introduction
1.座驾式电瓶牵引车外型时尚简约，美观大方
2.较小的转弯半径使其能够在狭小的通道中实现行驶、交汇
3.独特的驱动技术以及严谨、科学的人机工程设计有效的保证了整机的可靠性、稳定性和作业效率
4.行走采用进口控制器交流系统
Product parameter
| 1.1 | Brand | LJY | LJY | LJY | LJY | LJY | LJY | LJY | LJY | |
| 1.2 | Model | CBD-20ZA | CBD-20ZA | CBD-20ZA | CBD-25ZA | CBD-25ZA | CBD-30ZA | CBD-15ZA | CBD20-WS | |
| 1.3 | Power type | Battery(DC) | Battery(AC) | Battery(DC) | Battery(DC) | Battery(AC) | Battery(AC) | Battery(DC) | Battery(DC) | |
| 1.4 | Driving type | Standing | Standing | Standing | Standing | Standing | Standing | Walkie | Standing | |
| 1.5 | Rated load capacity | Q(kg) | 2000 | 2000 | 2000 | 2500 | 2500 | 3000 | 1500 | 2000 |
| 1.6 | Load center | C(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 600 |
| 1.7 | Wheelbase | y(mm) | 1370 | 1370 | 1500 | 1500 | 1500 | 1500 | 600 | 1310 |
| Weights | ||||||||||
| 2.1 | Service Weight (with battery) | kg | 500 | 650 | 475 | 670 | 695 | 763 | 220 | 125 |
| Wheels | ||||||||||
| 3.1 | wheel type | PU | PU | PU | PU | PU | PU | PU | Nylon | |
| 3.2 | Load wheel size | mm | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×70 | Φ80×60 | Φ80×60 |
| 3.3 | Drive wheel size | mm | Φ252×88 | Φ252×88 | Φ210×70 | Φ248×75 | Φ248×75 | Φ248×75 | Φ210×70 | Φ168×60 |
| 3.4 | Stabilizing wheel size | mm | Φ115×55 | Φ115×55 | Φ115×55 | Φ115×55 | Φ115×55 | Φ115×55 | Φ115×55 | / |
| Size | ||||||||||
| 4.1 | Lift height | h3(mm) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| 4.4 | Minimum height of fork | h13(mm) | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| 4.5 | Overall length | l1(mm) | 1950 | 1950 | 2350 | 2350 | 2350 | 2350 | 1600 | 1670 |
| 4.6 | Overall width | b1(mm) | 720 | 720 | 800 | 800 | 800 | 800 | 560 | 685/550 |
| 4.7 | Fork size | l/e/s(mm) | 1150/160/60 | 1150/160/60 | 1200/160/60 | 1220/160/60 | 1220/160/60 | 1220/160/60 | 1150/150/55 | 160 |
| 4.8 | Fork outside width | b5(mm) | 550/680 | 550 | 550/680 | 550/680 | 550/680 | 550/680 | 550/680 | 1900 |
| 4.10 | Aisle width for pallet 1000x1200mm, lengthways | Ast(mm) | 2330 | 2330 | 2930 | 2930 | 2930 | 2930 | 1900 | 1900 |
| 4.11 | Aisle width for pallet 800x1200mm, lengthways | Ast(mm) | 2330 | 2330 | 2840 | 2840 | 2840 | 2840 | 1900 | 1620 |
| Function | ||||||||||
| 5.1 | Driving speed, laden/unladen | km/h | 4.5/6.2 | 4.5/6.0 | 3.6/4.5 | 4.5/6.0 | 4.5/6.2 | 4.5/6.2 | 3.5/4.0 | 3.5/4 |
| 5.2 | Lifting speed, laden/unladen | mm/s | 300/530 | 250/300 | 80/100 | 250/300 | 250/300 | 250/300 | 300/500 | 53/60 |
| 5.3 | Lowering speed, laden/unladen | mm/s | 490/360 | 300/250 | 150/120 | 300/250 | 300/250 | 300/250 | 480/370 | 52/59 |
| 5.4 | Maximum climbing ability, laden/unladen | %(tanθ ) | 5/12 | 5/12 | 5/12 | 5/12 | 5/12 | 5/12 | 3/6 | 3/6 |
| 5.5 | Braking method | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | |
| Drive | ||||||||||
| 6.1 | Drive motor | kw | 1.0 | 1.5 | 1.0 | 1.5 | 1.5 | 1.5 | 0.75 | 0.7 |
| 6.2 | Lift motor | kw | 0.8 | 1.2 | 1.2 | 2.2 | 2.2 | 2.2 | 0.8 | 0.7 |
| 6.3 | Battery, voltage/rated capacity | V/Ah | 2*12V/80Ah | 24V/210Ah | 48V/50Ah | 24V/210Ah | 24V/240Ah | 24V/280Ah | 2*12V/60Ah | 48V/15A lithium |
