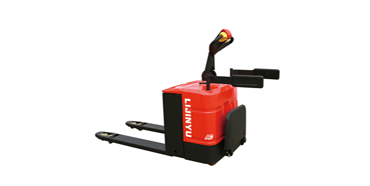

Product introduction
1.转弯半径小、车辆重心低，转向稳定性极佳。
2.操作手柄左右两侧均有上升下降按钮，非常方便操作。
3.操作手柄加装龟速开关，速度控制更加精准。
4.车身小、自重轻，能在狭小的通道内作业，能满载进入电梯，并能在轻载荷楼面作业。
5.采用高效直流牵引电动机，牵引力大，步行速度行走，能承受繁重的物料搬运。
Product parameter
| 1.1 | Brand | LJY | LJY | LJY | |
| 1.2 | Model | CBD-20ZA | CBD-20ZA | CBD-15ZA | |
| 1.3 | Power type | Battery(DC) | Battery(DC) | Battery(DC) | |
| 1.4 | Driving type | Standing | Standing | Walkie | |
| 1.5 | Rated load capacity | Q(kg) | 2000 | 2000 | 1500 |
| 1.6 | Load center | C(mm) | 500 | 500 | 500 |
| 1.7 | Wheelbase | y(mm) | 1370 | 1500 | 600 |
| Weights | |||||
| 2.1 | Service Weight (with battery) | kg | 500 | 475 | 220 |
| Wheels | |||||
| 3.1 | wheel type | PU | PU | PU | |
| 3.2 | Load wheel size | mm | Φ80×70 | Φ80×70 | Φ80×60 |
| 3.3 | Drive wheel size | mm | Φ252×88 | Φ210×70 | Φ210×70 |
| 3.4 | Stabilizing wheel size | mm | Φ115×55 | Φ115×55 | Φ115×55 |
| Size | |||||
| 4.1 | Lift height | h3(mm) | 200 | 200 | 200 |
| 4.4 | Minimum height of fork | h13(mm) | 85 | 85 | 85 |
| 4.5 | Overall length | l1(mm) | 1950 | 2350 | 1600 |
| 4.6 | Overall width | b1(mm) | 720 | 800 | 560 |
| 4.7 | Fork size | l/e/s(mm) | 1150/160/60 | 1200/160/60 | 1150/150/55 |
| 4.8 | Fork outside width | b5(mm) | 550/680 | 550/680 | 550/680 |
| 4.10 | Aisle width for pallet 1000x1200mm, lengthways | Ast(mm) | 2330 | 2930 | 1900 |
| 4.11 | Aisle width for pallet 800x1200mm, lengthways | Ast(mm) | 2330 | 2840 | 1900 |
| Function | |||||
| 5.1 | Driving speed, laden/unladen | km/h | 4.5/6.2 | 3.6/4.5 | 3.5/4.0 |
| 5.2 | Lifting speed, laden/unladen | mm/s | 300/530 | 80/100 | 300/500 |
| 5.3 | Lowering speed, laden/unladen | mm/s | 490/360 | 150/120 | 480/370 |
| 5.4 | Maximum climbing ability, laden/unladen | %(tanθ ) | 5/12 | 5/12 | 3/6 |
| 5.5 | Braking method | Electromagnetic | Electromagnetic | Electromagnetic | |
| Drive | |||||
| 6.1 | Drive motor | kw | 1.0 | 1.0 | 0.75 |
| 6.2 | Lift motor | kw | 0.8 | 1.2 | 0.8 |
| 6.3 | Battery, voltage/rated capacity | V/Ah | 2*12V/80Ah | 48V/50Ah | 2*12V/60Ah |
