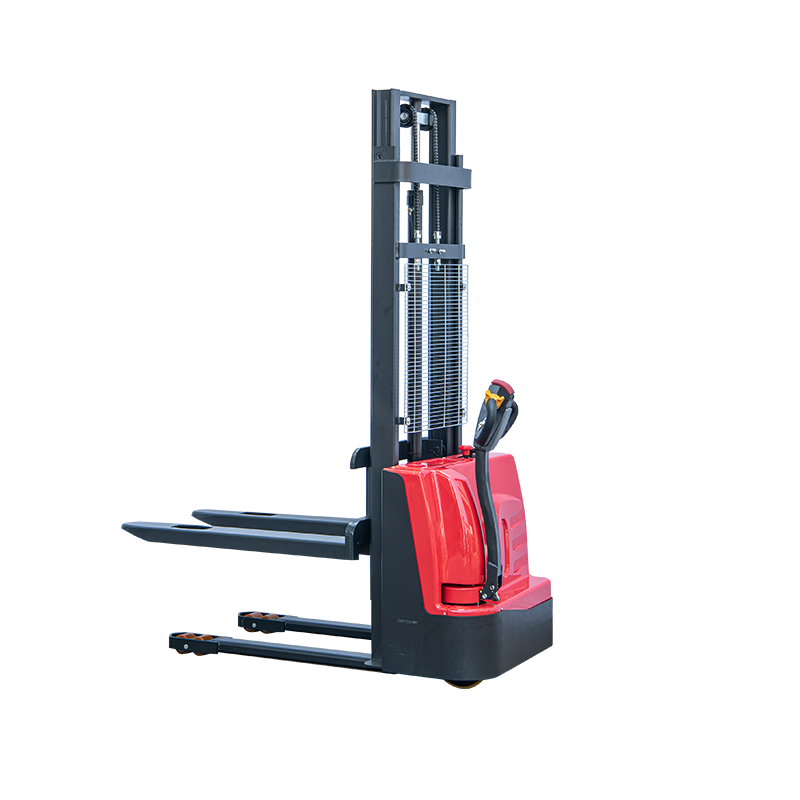

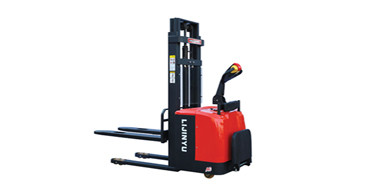

Electric Stacker_Three Wheels Forklift_Product_Zhejiang YujieZhejiang Yujie Intelligent Equipment Co.,Ltd

Product introduction

1. 瑞马手柄，操作灵活稳定。
2. 美国进口交流系统，反应灵敏。
3. 大容量蓄电池，保证动力强劲持久。
4. 单边设计，符合一些特殊需求。
5. 设计美观流畅，符合现代审美。

Product parameter

1.1	Brand		LJY	LJY	LJY	LJY	LJY	LJY	LJY	LJY	LJY
1.2	Model		CD-D15AD(ES)	CD-D15AD(ES)	CD-D15AD(ES)	CD-D15AD(ES)	CD-D15AD(ES)	CD-D15AD(ES)	CD-D20AD(ES)	CD-D20AD(ES)	CD-D20AD(ES)
1.3	Power type		Battery(DC)	Battery(DC)	Battery(DC)	Battery(DC)	Battery(DC)	Battery(DC)	Battery(DC)	Battery(DC)	Battery(DC)
1.4	Driving type		Walkie	Walkie	Walkie	Walkie	Walkie	Walkie	Walkie	Walkie	Walkie
1.5	Rated load capacity	Q(kg)	1500	1500	1500	1500	1500	1500	2000	2000	2000
1.6	Load center	C(mm)	500	500	500	500	500	500	500	500	500
1.7	Wheelbase	y(mm)	1240	1240	1240	1240	1240	1240	1240	1240	1240
Wheels
3.1	wheel type		PU	PU	PU	PU	PU	PU	PU	PU	PU
3.2	Load wheel size	mm	Φ80×70	Φ80×70	Φ80×70	Φ80×70	Φ80×70	Φ80×70	Φ80×70	Φ80×70	Φ80×70
3.3	Drive wheel size	mm	Φ210×70	Φ210×70	Φ210×70	Φ210×70	Φ210×70	Φ210×70	Φ210×70	Φ210×70	Φ210×70
3.4	Stabilizing wheel size	mm	Φ115×55	Φ115×55	Φ115×55	Φ115×55	Φ115×55	Φ115×55	Φ115×55	Φ115×55	Φ115×55
3.5	Number of wheels,front/rear(x=drive wheel)		4/1x+2	4/1x+2	4/1x+2	4/1x+2	4/1x+2	4/1x+2	4/1x+2	4/1x+2	4/1x+2
Size
4.1	Mast closed height	h1(mm)	2080	1580	1830	2080	2280	2580	2080	2280	2080
4.2	Lift height	h3(mm)	1600	2000	2500	3000	3500	4000	3000	3500	3000
4.3	Mast extended height with load-backrest	h4(mm)	2080	2580	3080	3580	4080	4380	3580	4080	3580
4.4	Handle height(min/max)	h14(mm)	800/1200	800/1200	800/1200	800/1200	800/1200	800/1200	800/1200	800/1200	800/1200
4.5	Minimum height of fork	h13(mm)	90	90	90	90	90	90	90	90	90
4.6	Overall length	l1(mm)	1900	1900	1900	1900	1900	1900	1900	1900	1900
4.7	Overall width	b1(mm)	800	800	800	800	800	800	800	800	1200
4.8	Fork size	l/e/s(mm)	1150/160/60	1150/160/60	1150/160/60	1150/160/60	1150/160/60	1150/160/60	1150/160/60	1150/160/60	1150/160/60
4.9	Fork outside width	b5(mm)	550/680	550/680	550/680	550	550/680	550/680	550/680	550/680	550/680
4.10	Mast ground clearance	m1(mm)	90	90	90	90	90	90	90	90	90
4.11	Aisle width for pallet 1000x1200mm, lengthways	Ast(mm)	2537	2537	2537	2537	2537	2537	2537	2537	2537
4.12	Aisle width for pallet 800x1200mm, lengthways	Ast(mm)	2468	2468	2468	2468	2468	2468	2468	2468	2468
4.13	Turning radius	Wa(mm)	1600	1600	1600	1600	1600	1600	1600	1600	1600
Function
5.1	Driving speed, laden/unladen	km/h	4.2/5.6	4.2/5.6	4.2/5.6	4.2/5.6	4.2/5.6	4.2/5.6	4.2/5.6	4.2/5.6	4.2/5.6
5.2	Lifting speed, laden/unladen	mm/s	105/148	125/117	125/117	125/117	125/117	125/117	125/117	125/117	125/117
5.3	Lowering speed, laden/unladen	mm/s	125/117	125/117	125/117	125/117	125/117	125/117	125/117	125/117	125/117
5.4	Maximum climbing ability, laden/unladen	%(tanθ )	3/6	3/6	3/6	3/6	3/6	3/6	3/6	3/6	3/6
5.5	Braking method		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Drive
6.1	Drive motor	kw	0.75	0.75	0.75	0.75	0.75	0.75	1.0	1.0	1.0
6.2	Lift motor	kw	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2
6.3	Battery, voltage/rated capacity	V/Ah	2×12V/85Ah	2×12V/85Ah	2×12V/85Ah	2×12V/85Ah	2×12V/85Ah	2×12V/85Ah	2×12V/85Ah	2×12V/85Ah	2×12V/85Ah
6.4	Battery weight	kg	48	48	48	48	48	48	48	48	48
6.5	Steering system		Mechanical steering	Mechanical steering	Mechanical steering	Mechanical steering	Mechanical steering	Mechanical steering	Mechanical steering	Mechanical steering	Mechanical steering
